Refurbishment · Hertfordshire

Stevenage

A nearly new building whose roof had leaked from day one, overclad by Tek Clad Ltd as principal contractor with the tenant in full operation.

Programme: Five weeks
Roof: c. 2,120 m²
Warranty: 25-year product

The project

A new building with a composite roof that had been installed incorrectly and leaked from day one. Many attempts to fix it had failed.

It shows what can go wrong when work is not installed correctly: the wrong contractor can mean a huge amount of extra cost, wasted time and pressure on everyone affected by the failures.

We worked directly for the architect, and as principal contractor we installed a complete overclad system on the nearly new building, to the specification and industry standards, in five weeks.

Principal ContractorWe organised all works, including scaffolding and netting.
Tenant in PlaceThe business stayed in full operation throughout.
25-Year WarrantyEuroclad Refresh system with a 25-year product warranty.

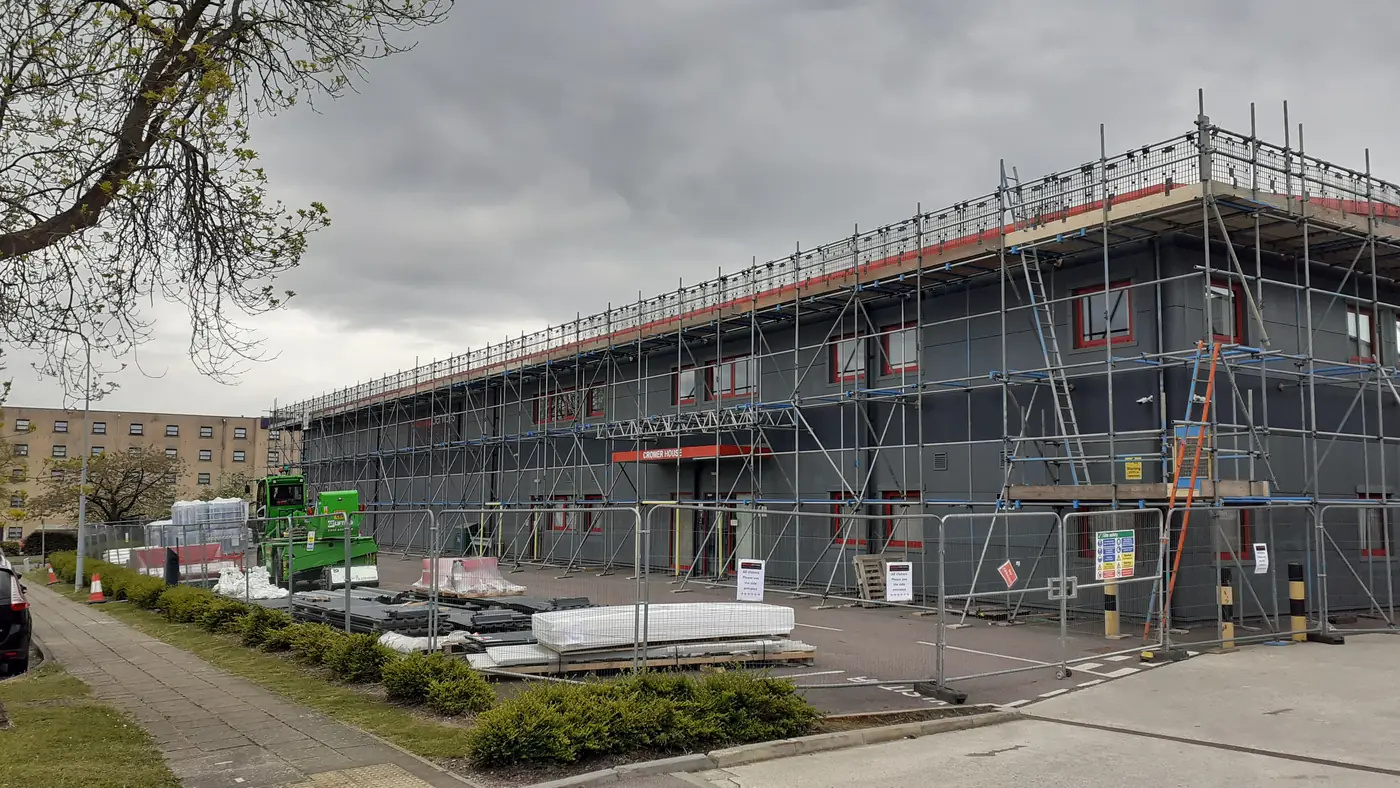

The building in Stevenage with scaffolding during the overclad

Scope and specification

Roof: c. 2,120 m²
overclad
System: Euroclad Refresh
Flashings: HPS200 Ultra
coated steel
Warranty: 25-year
product warranty

Composite metal roof system to current Building Regulations
Heras fencing around all four elevations and a site compound
Welfare unit and site office on site
Lifting with our own 30m rotating telehandler

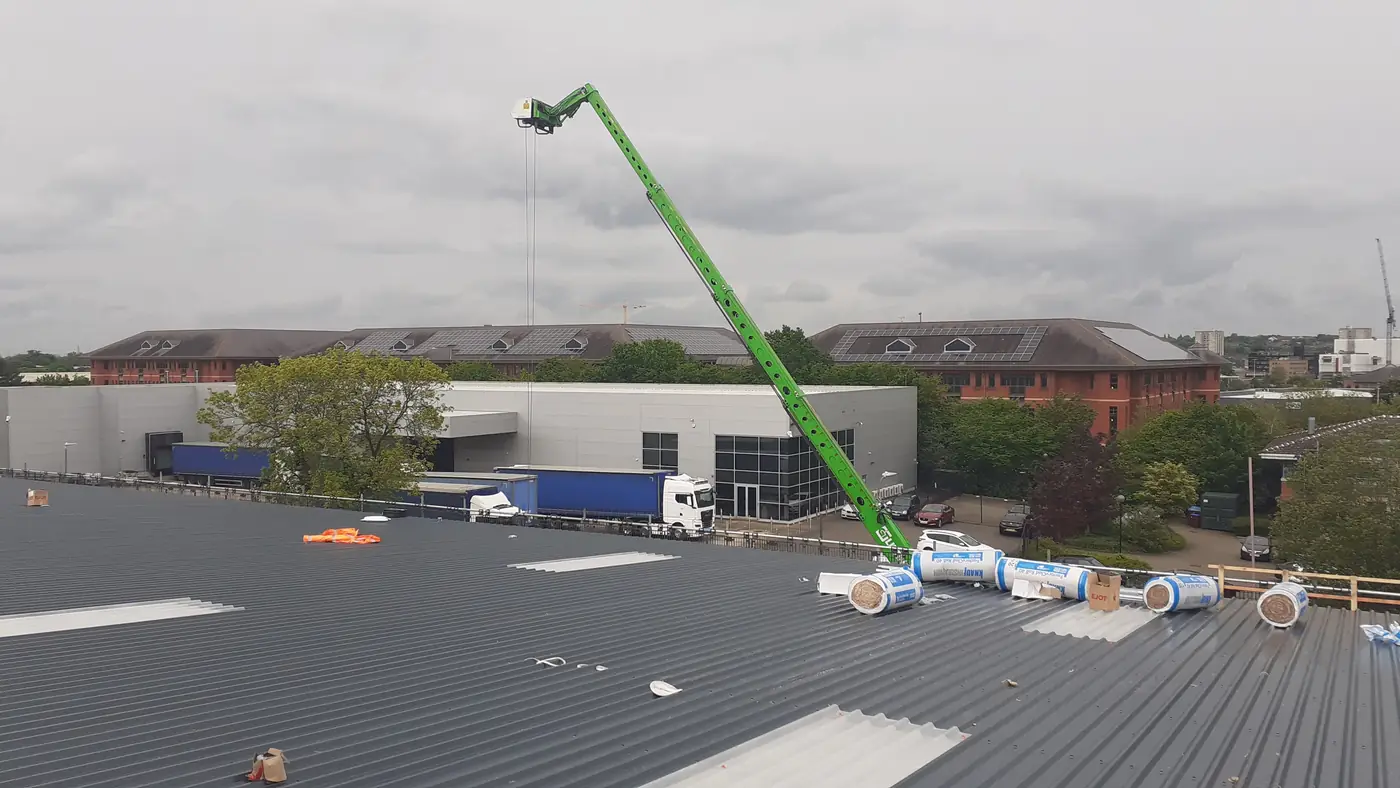

Rotating telehandler lifting insulation onto the roof

The challenge

A tenant in full operation

All the work had to be done with the tenant in place and their business in full operation. As principal contractor, we prepared a construction phase plan that catered for everyone on site, and oversaw and organised all the works, including access scaffolding and roof safety netting.

Scaffolding went up and came down over weekends to work around the tenant. Our site and team managers ran the job, and all lifting was done with our own 30m rotating telehandler.

On site

Five weeks on the roof

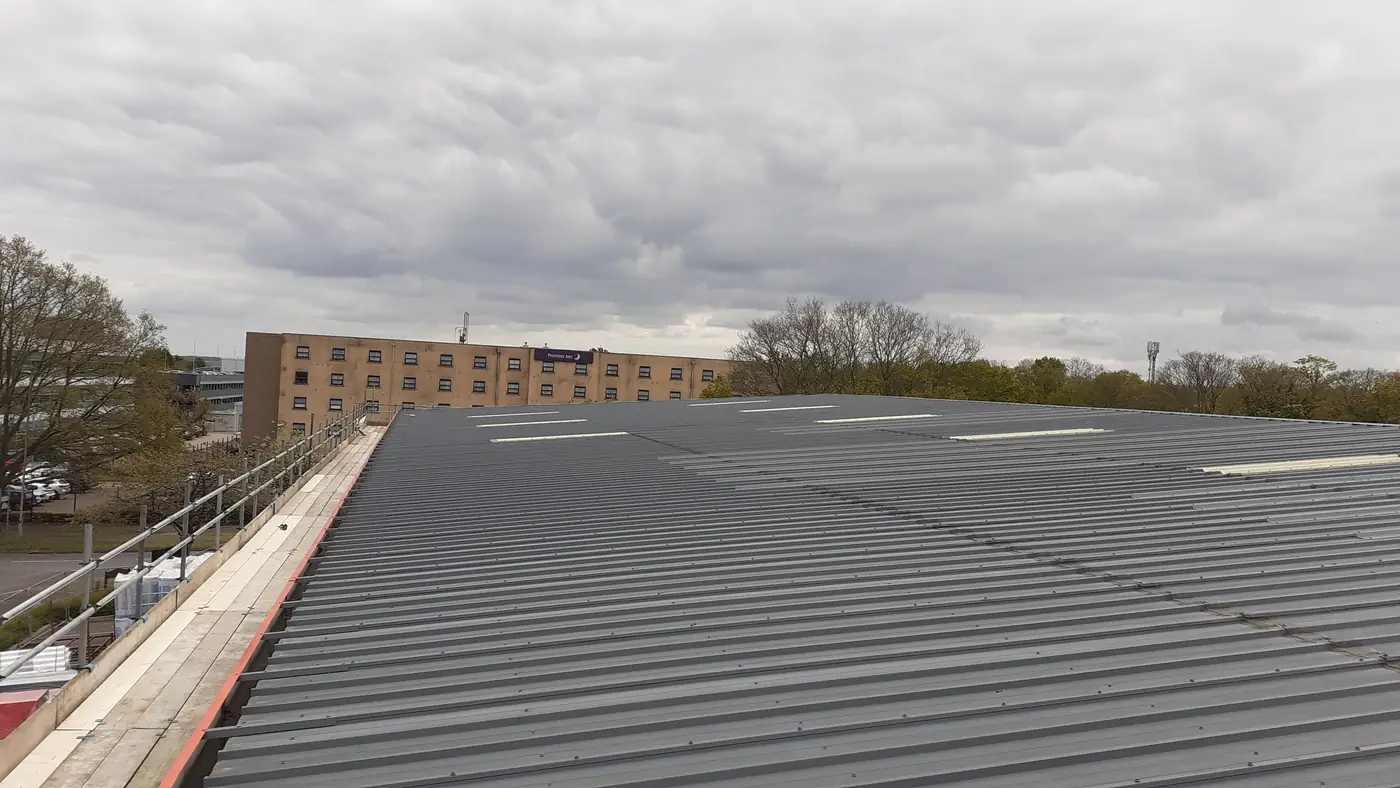

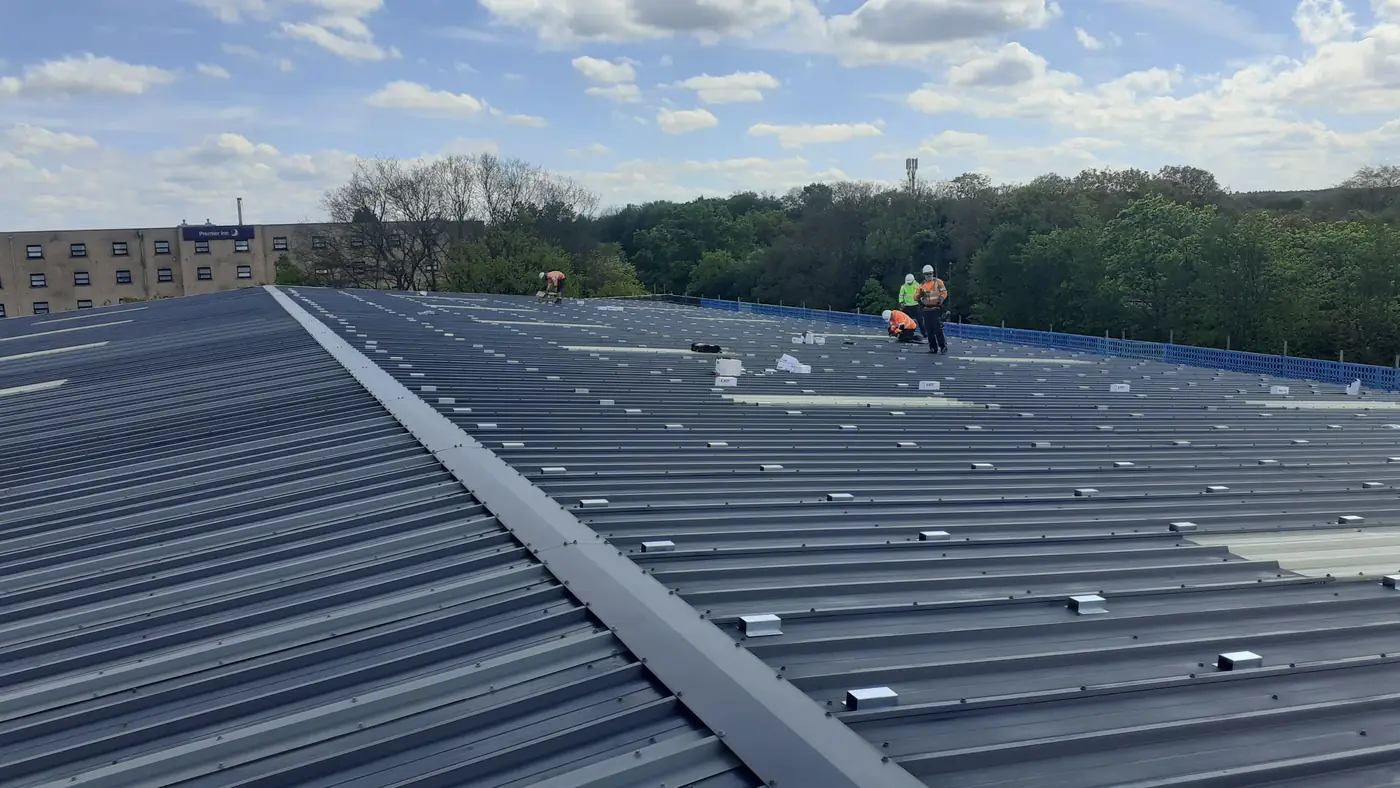

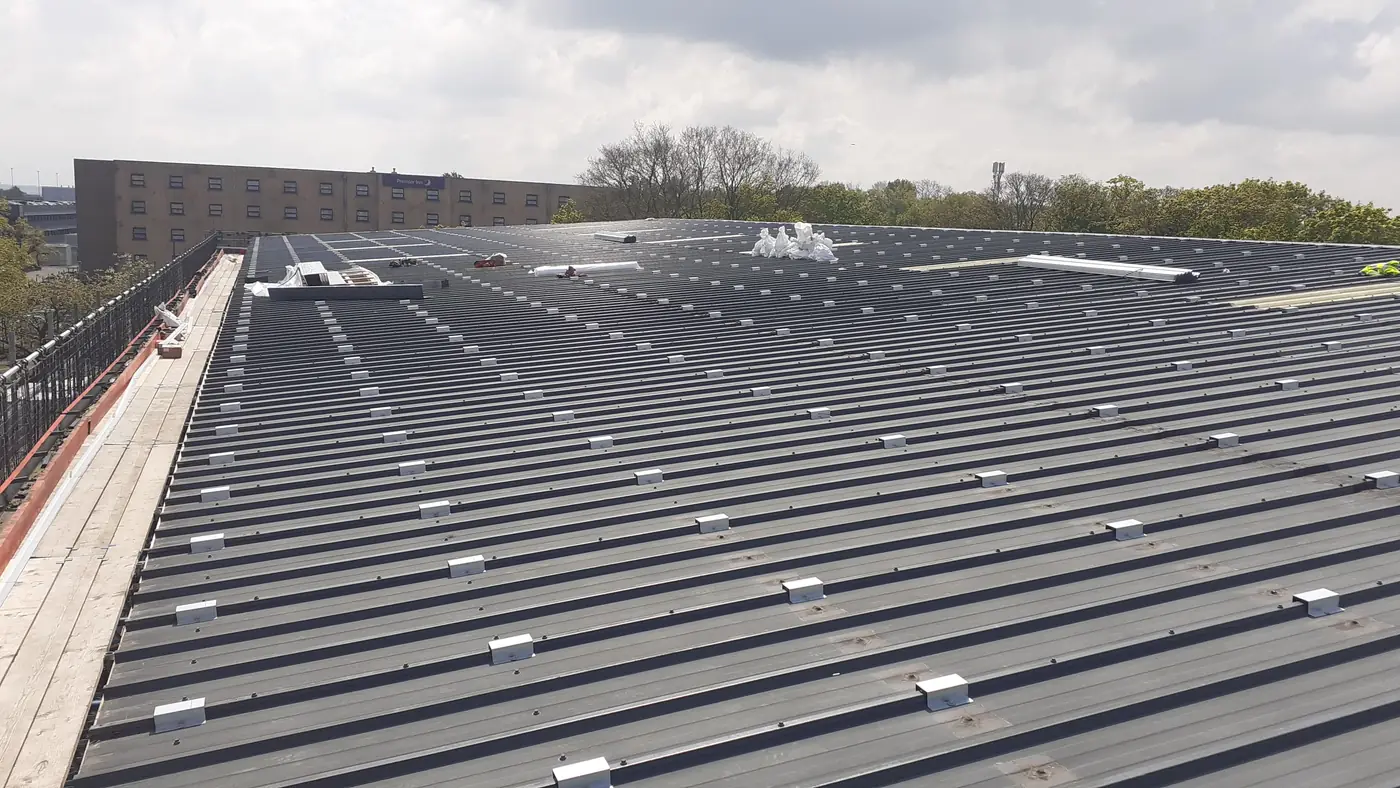

Insulation going down over the old roof, new sheets and the finished eaves trims.

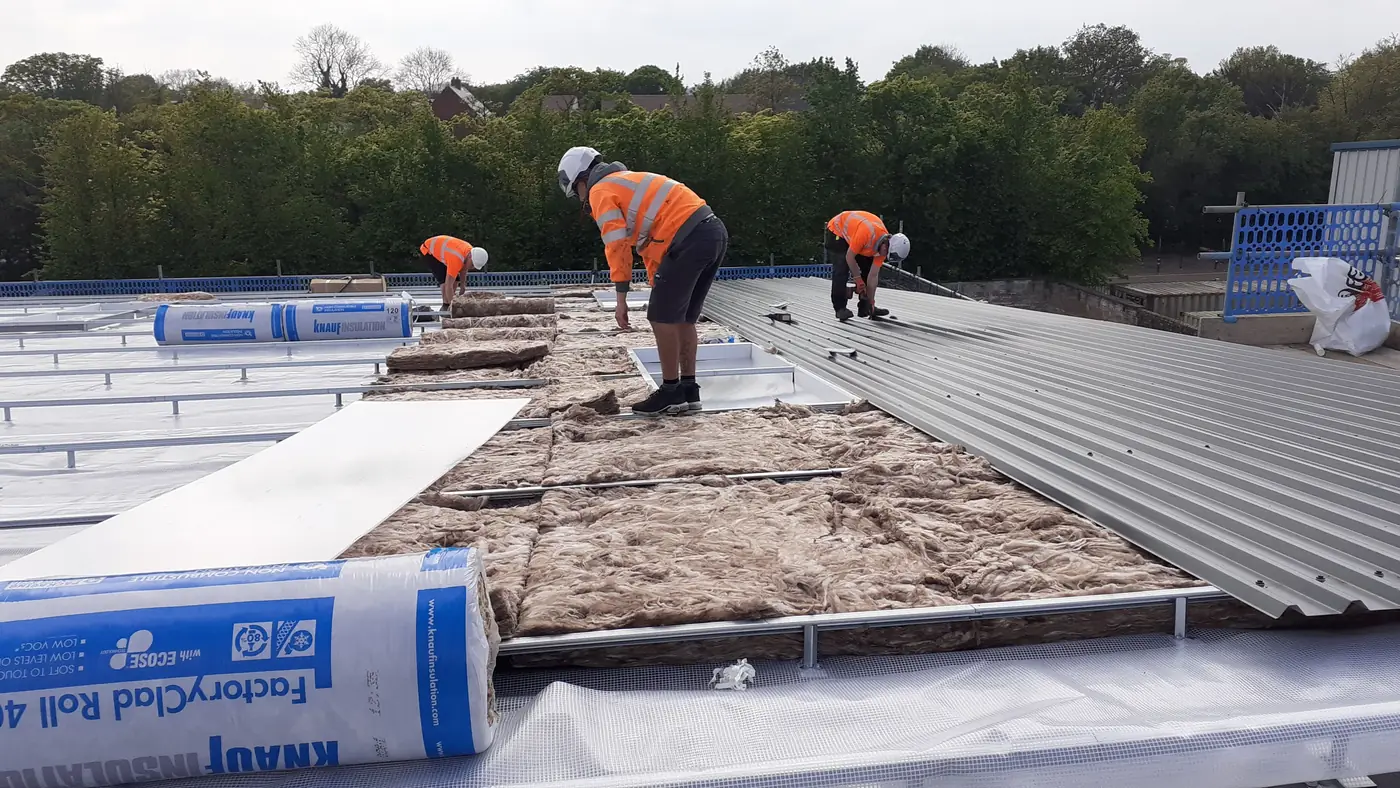

Team laying insulation over the existing roof

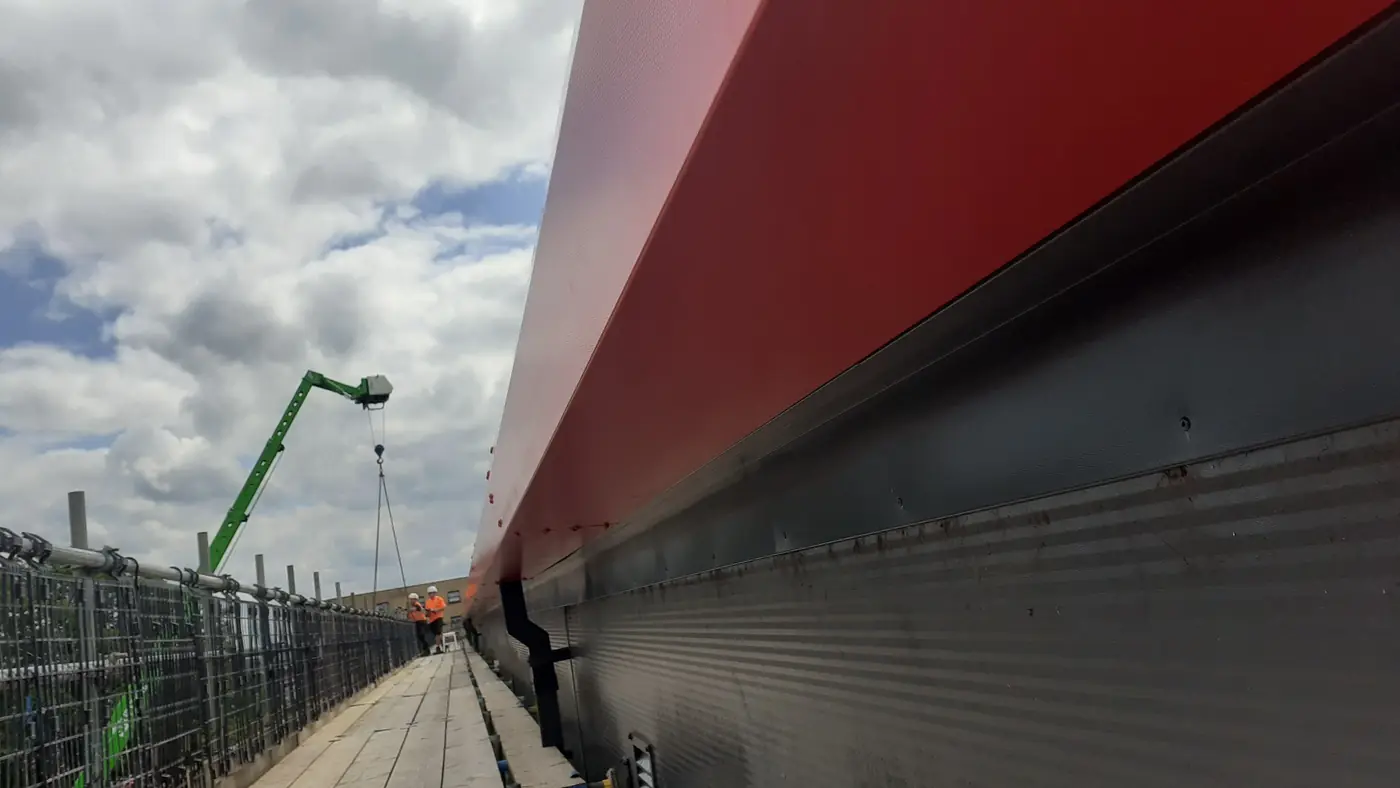

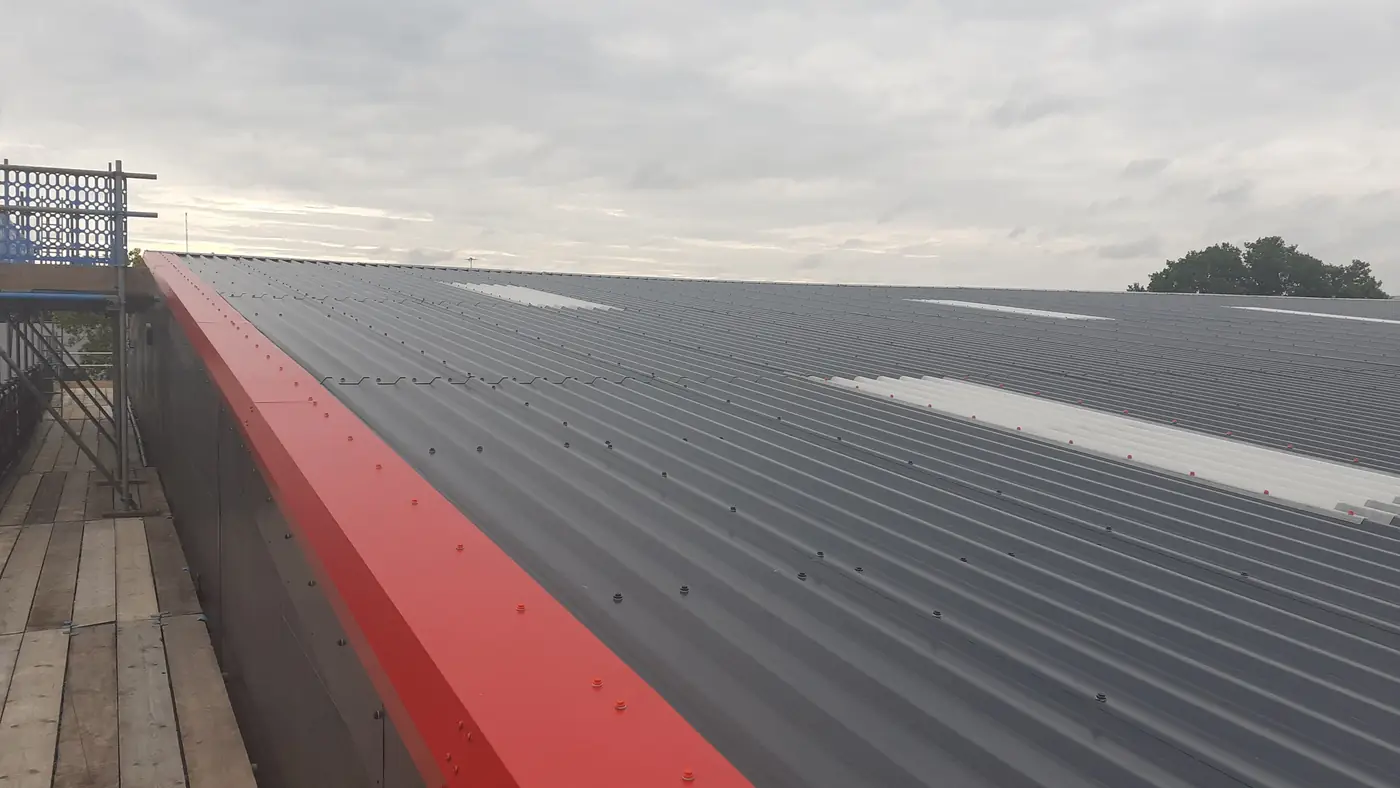

New eaves trim and walkway along the roof edge

The result

Leak free, at last

The building now has a leak-free roof with a 25-year material warranty. The project was completed without issue, and the site was handed back spotless on handover day.

"Tek Clad undertook an over-cladding project which I had managed in Stevenage. The project was seamless, professional and prompt. Ian (the Director) regularly attended site and ensured that the works were undertaken safely. In addition, the tenant of the building remained in occupation and operation throughout the works, and were also very happy with the results. Top job, and I would certainly recommend them for any cladding project."

Project manager, Stevenage
