Refurbishment · Somerset

Cadbury Building A, Sparkford

A failing early 1990s twin skin roof overclad with a complete insulated system, giving a long-term, energy-efficient solution for an industrial unit.

Programme: Three weeks
Roof: c. 1,200 m²
Completed: 2025

The project

An early 1990s industrial unit at Cadbury Business Park, with a twin skin metal roof suffering from plastisol failure, corrosion and water ingress.

We have a long-standing relationship with this client, having delivered and maintained numerous projects for them over many years. On this roof we had carried out patch repairs and maintenance throughout its service life, but with ongoing failures and the roof at the end of its lifespan, a full refurbishment was needed.

We installed a complete overclad system that complies with current building regulations, in three weeks.

OvercladA complete new roof built over the existing one.
200mm InsulationGlass fibre insulation to current building regulations.
Repeat ClientNumerous projects for this client over many years.

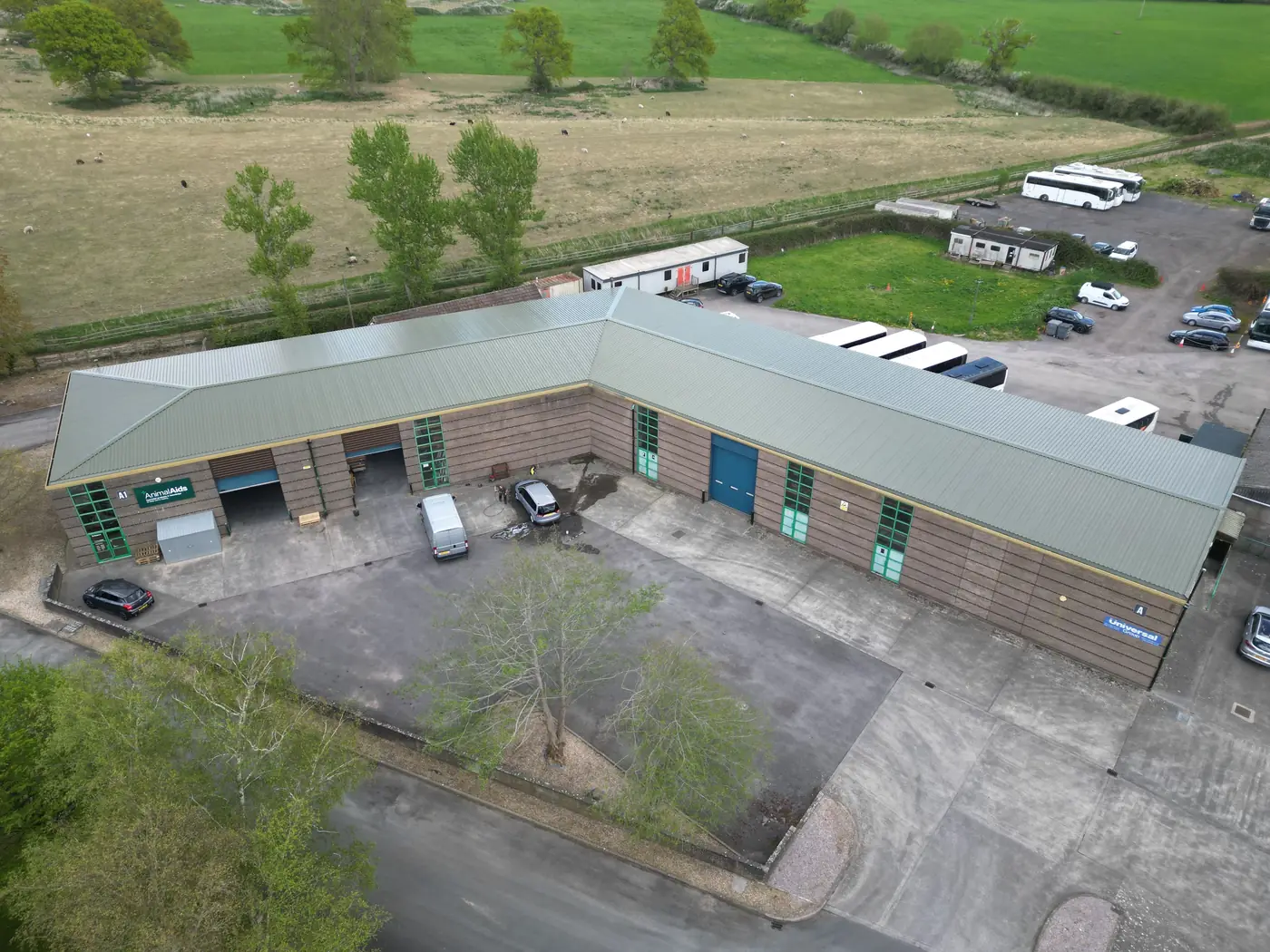

Aerial view of the overclad roof on Cadbury Building A

Scope and specification

Roof: c. 1,200 m²
overclad
Roof sheets: 0.7mm trapezoidal
plastisol coated LG
Insulation: 200mm
glass fibre
Gutter linings: Plygene
by HD Sharman

Spacer bar system over the existing roof
Matching plastisol coated steel flashings
Complies with current building regulations
Scaffolding and roof safety netting

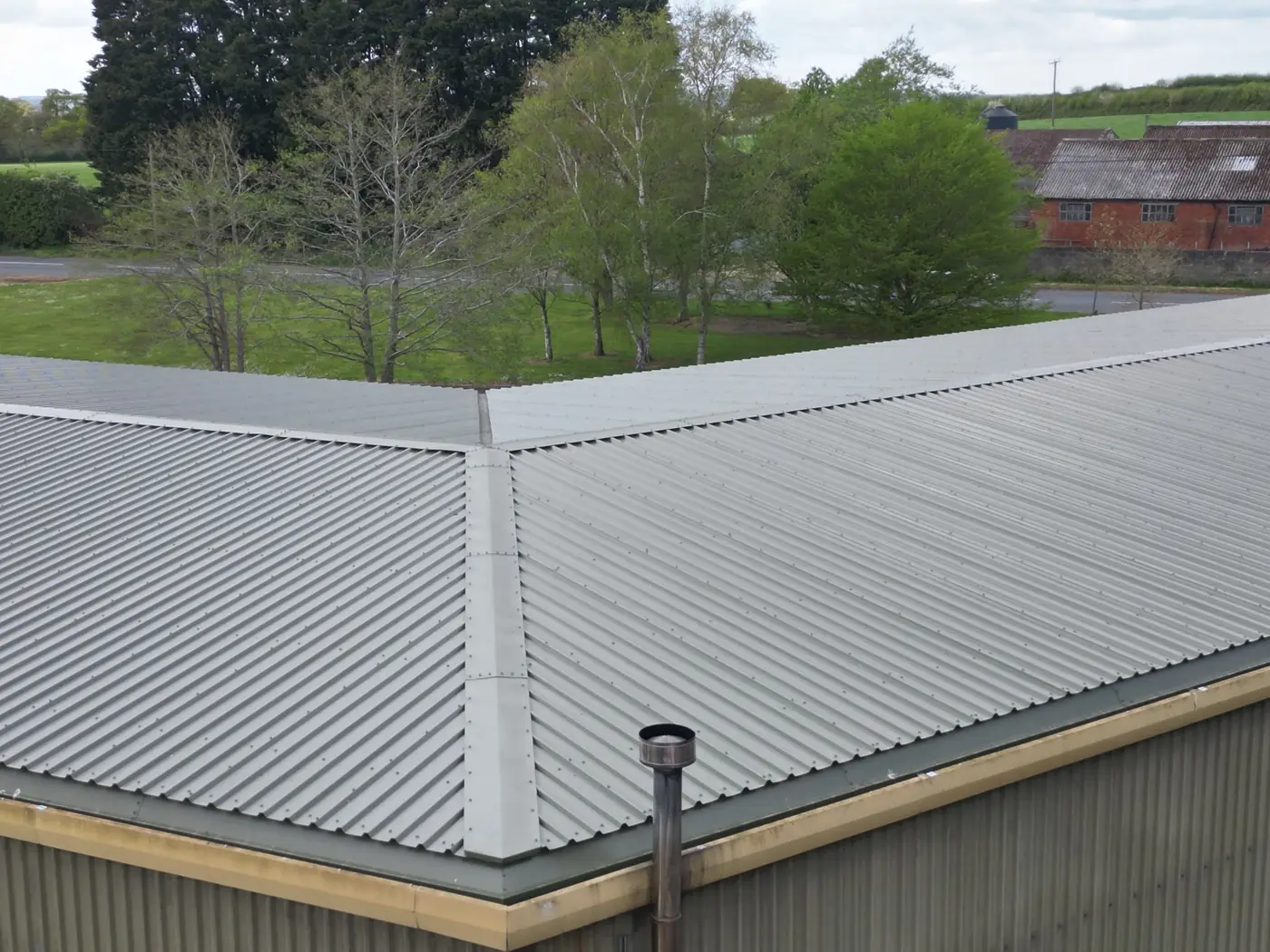

New roof sheets meeting the eaves and existing gutter line

The challenge

Draining into the existing gutters

The main challenge was creating a suitable detail for the new roof to drain into the building's existing gutters, which were lined with Plygene as part of the works.

Otherwise the job ran without complications, from scaffolding and netting through to the finished roof.

Before and after

Three weeks on the roof

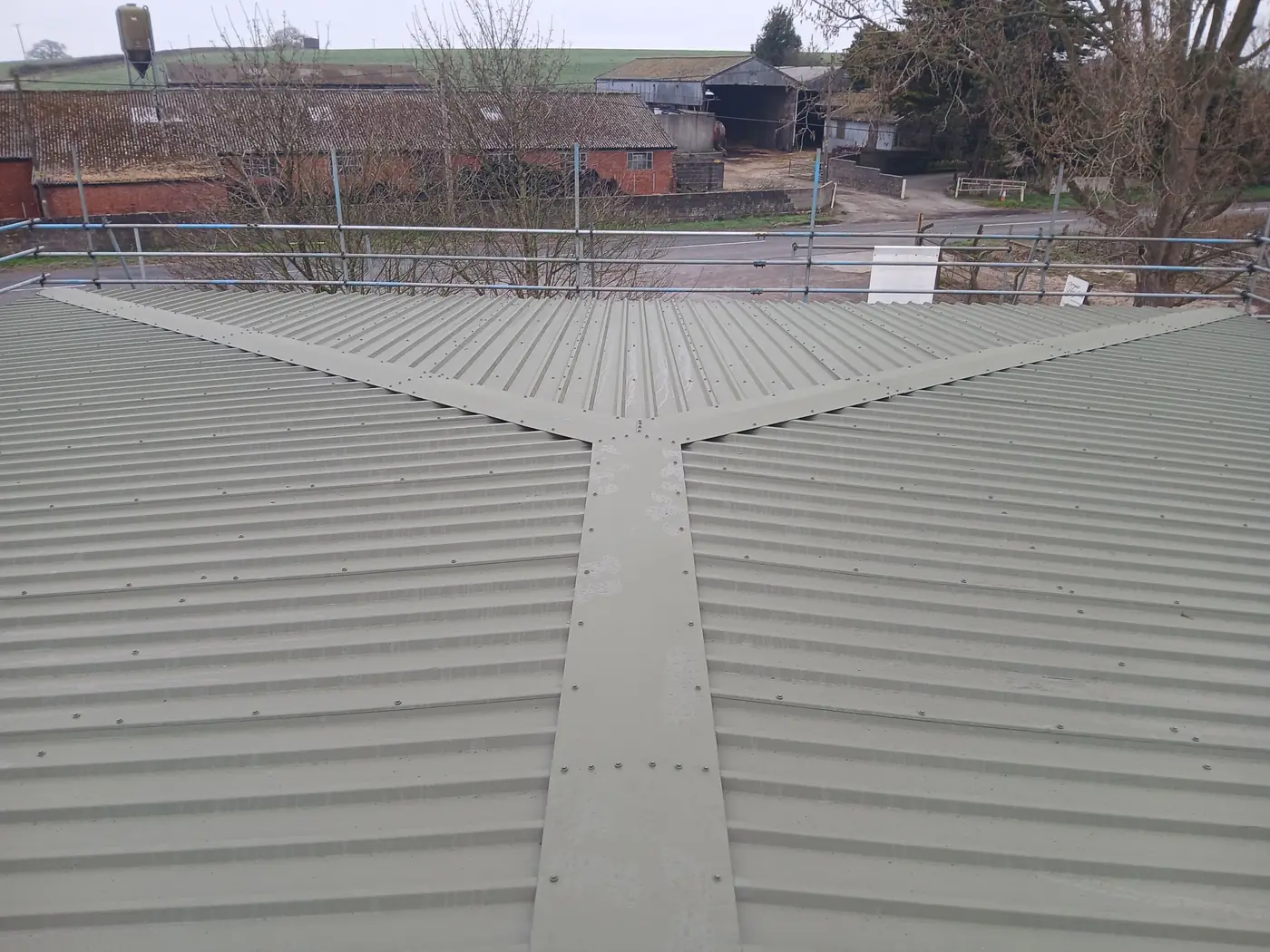

The worn original roof, new sheets lifted into place, and the finished valley detail.

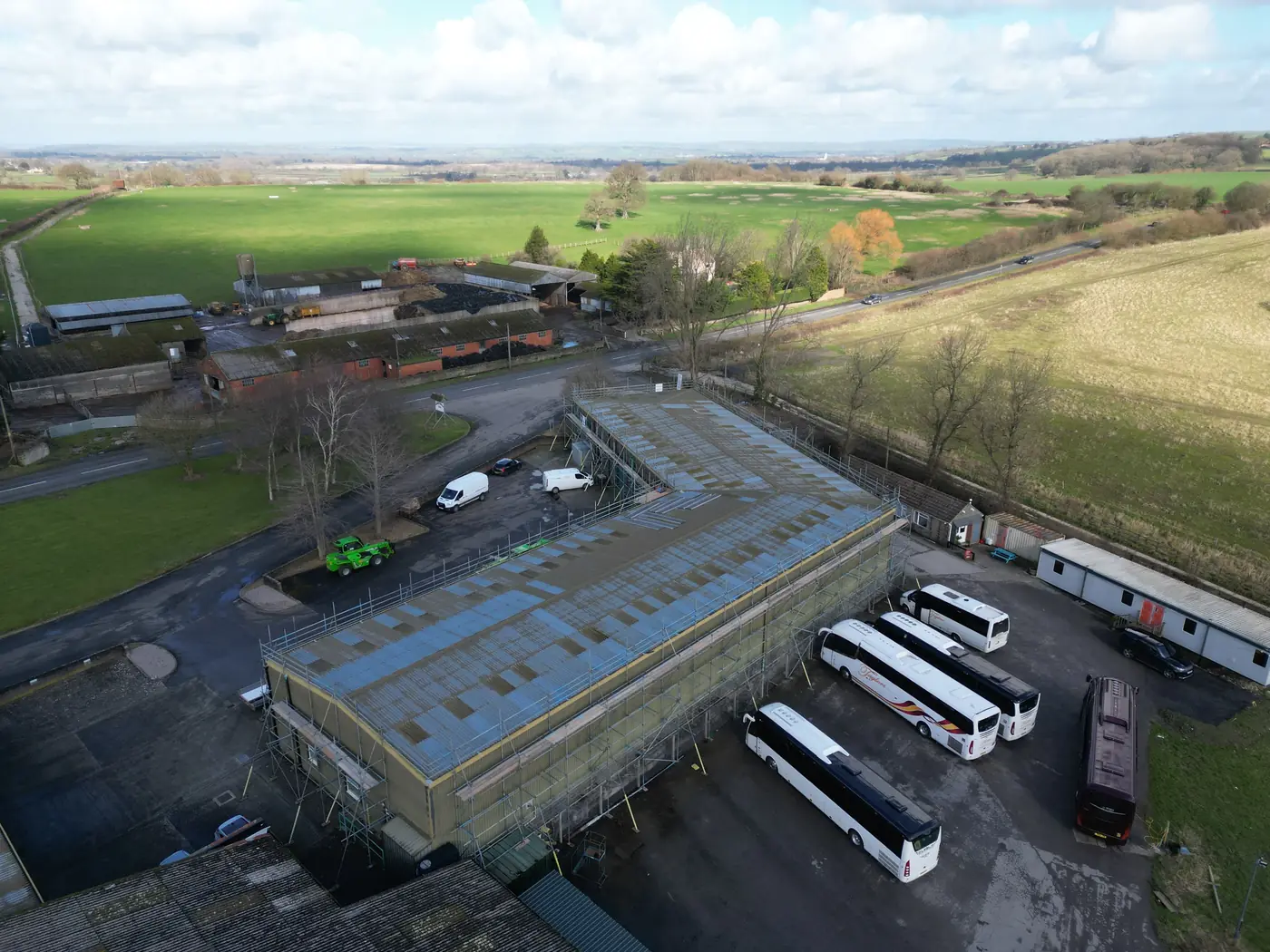

Original corroded roof with scaffolding in place

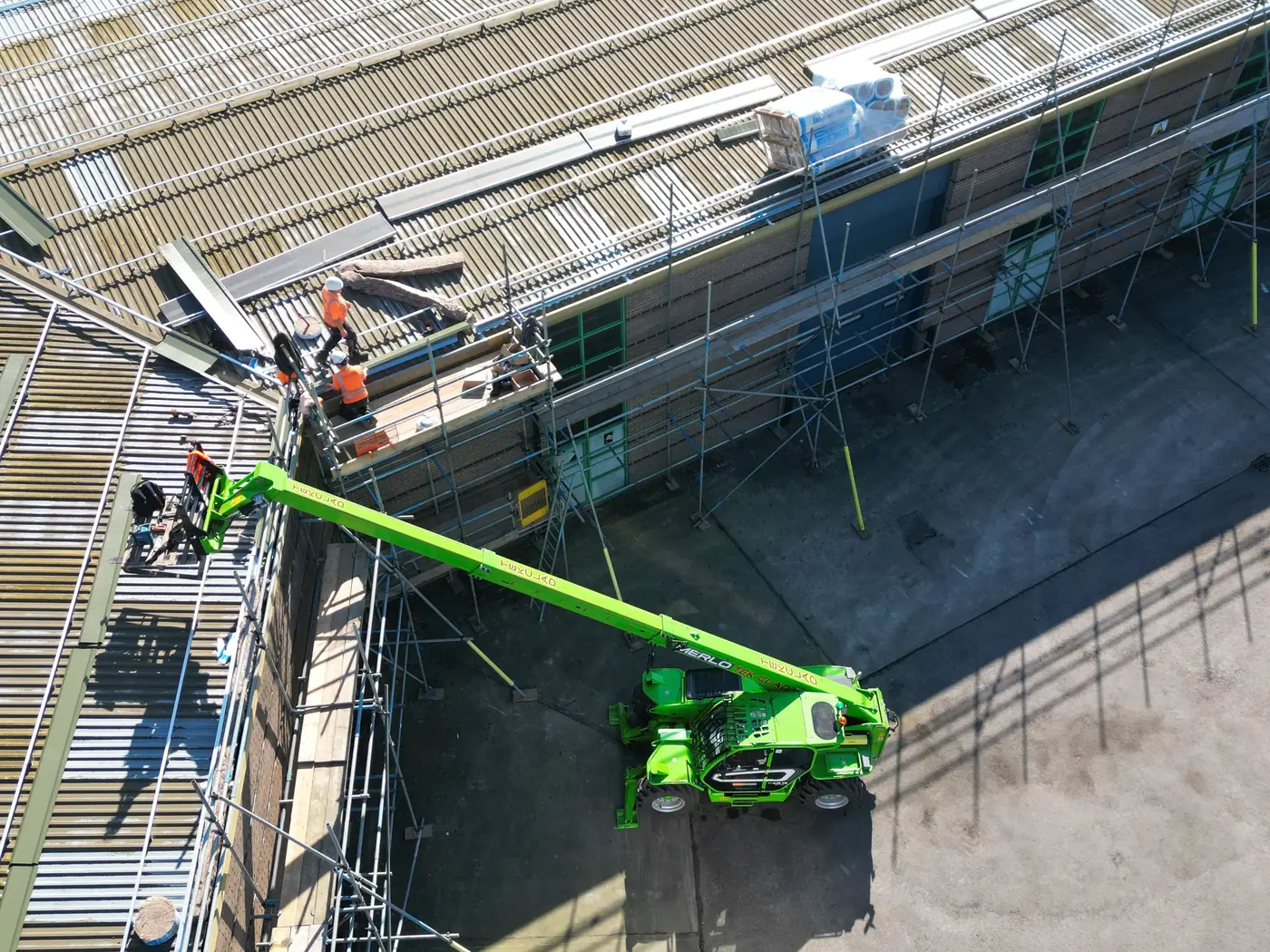

Telehandler lifting new roof sheets onto the building

The result

Another successful project

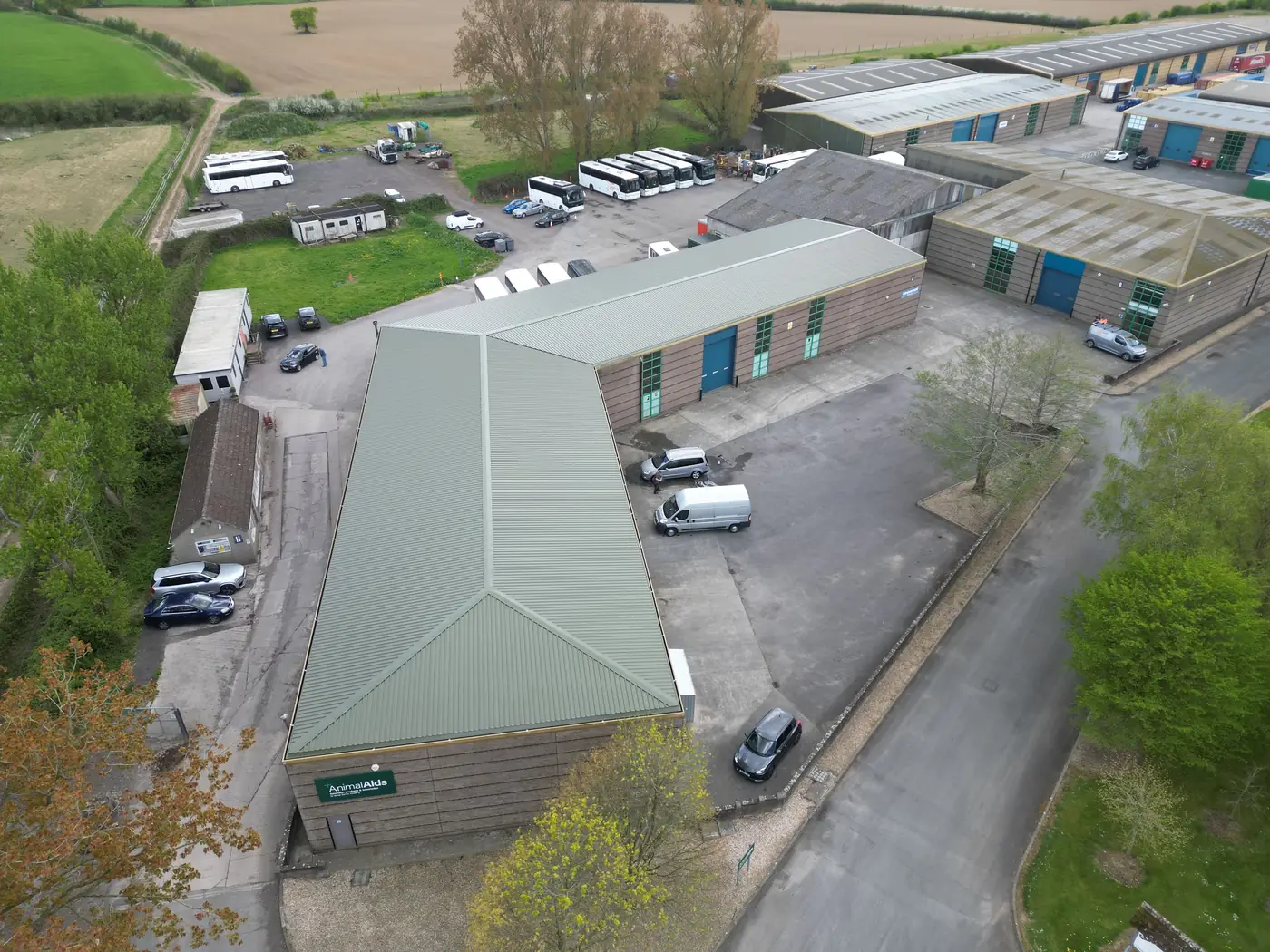

The refurbished roof gives this industrial unit an energy-efficient, long-term solution, and another successful project for Cadbury Business Park.

"We've used Tek Clad Ltd for a number of years now covering a range of projects including large new builds (up to 26,500 sq/ft) and refurbishments (including asbestos removal), as well as smaller changes and maintenance. Typically the work is one of the big ticket items within a project and therefore it's key to have a company you can rely on to deliver to time and cost whilst working seamlessly with others and helping to resolve any issues as they occur. What keeps us coming back to Ian and his team is the level of service, quality, professionalism and overall can do approach they bring to their work."

Building owner, Cadbury Business Park
